Product Description
Mechanical Parameters
- Dimensions: 45mm x 45mm
- Power supply: 5V/0.5A
Processor
- STMicroelectronics STM32MP13xxAE Microprocessor
- Up to 1GHz single core Arm Cortex-A7 32-bit RISC core
Memory
- 512MB DDR3L (supports up to 1GB DDR3L)
- 4GB eMMC Flash (supports up to 64GB eMMC)
Peripherals and Signals Routed to Pins
1.27mm pitch 124-pin stamp hole expansion interface
4 x Serial ports
4 x I2C
2 x SPI
1 x SAI
1 x I2S
2 x USB 2.0
2 x SDIO
1 x QSPI
1 x MIPI-DSI
OS Support
- Linux 5.4.31

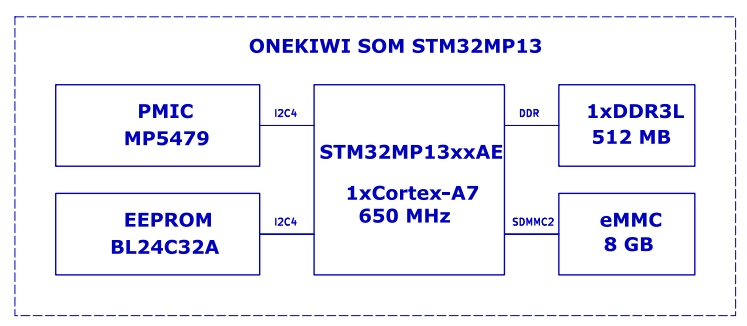

Block Diagram

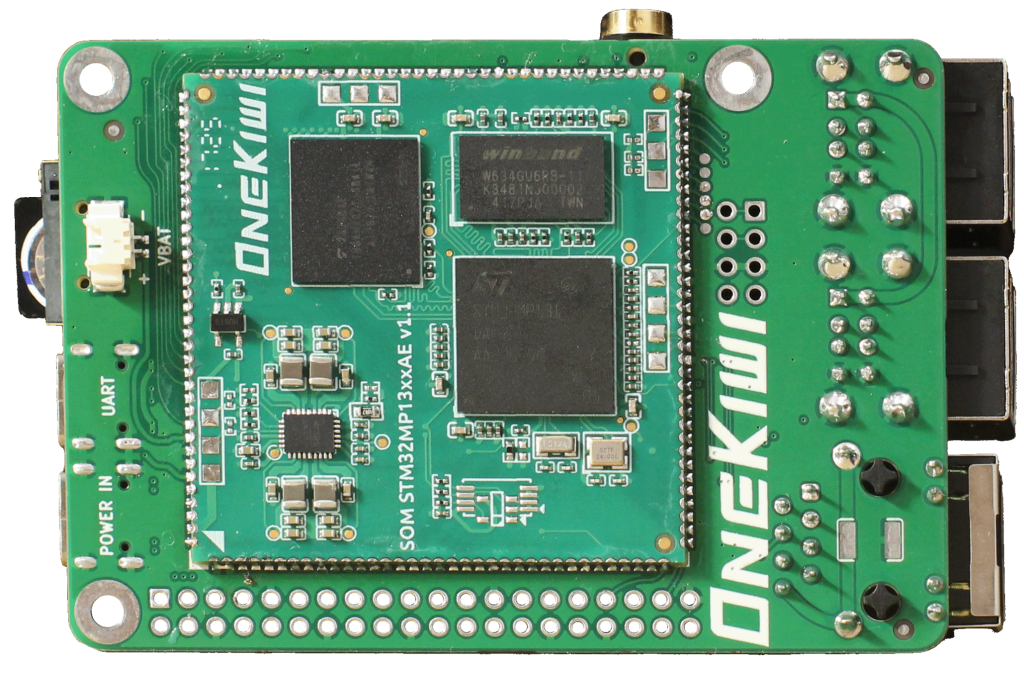

Product Images
