Product Description
System Overview
The BMS for high-current designs with a 3-cell to 8-cell series battery management unit can support Quick Charging with no limitation of ambient or battery cell temperature. The discharge voltage can output wide range from 4.2V full charged down to 2.7V cut-off level. The board offers a high-power solution with up to 50A of continuous current and up to 100A of peak current. The design also features with the Active Balancer circuit and advanced Fuel Gauge solution.
System Benefits
- Work well standalone without MCU.
- Integrated charge/discharge high side MOSFET driver.
- Easy monitoring: support BLE connectivity and/or Modbus RS485
- Performs SoC, SoH, time to charge full and time to empty.
- Active balancer circuit with max current 3A
- Support MPPT solar charger offer 98% efficiency
- Multiple protection functions
- OCP, SCP, OVP, OTP, UVP and short-circuit conditions
- Auto/programable detection/recovery times
Target Applications
- Battery back-up systems (UPS)
- Energy storage systems (ESS)
- Street Lighting

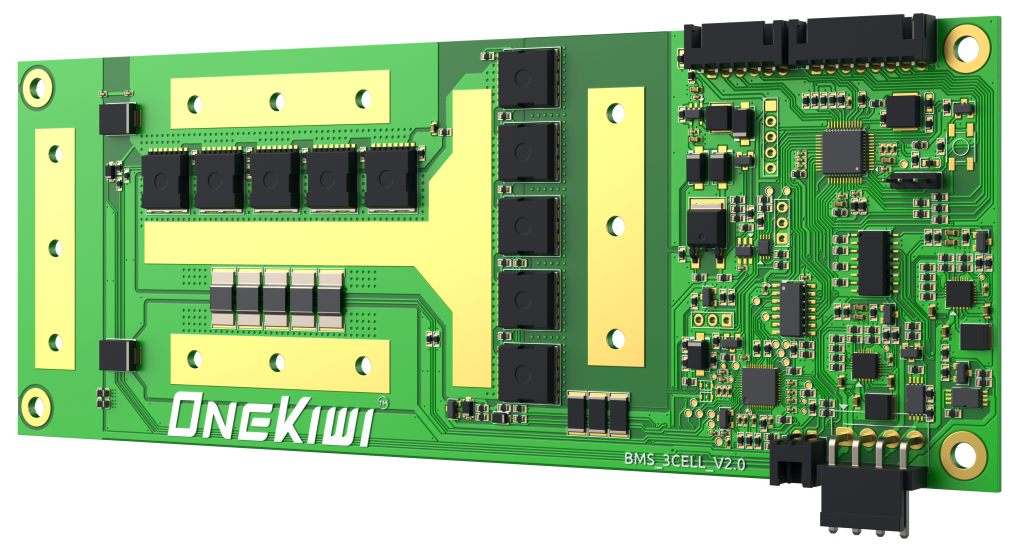

Product Images
