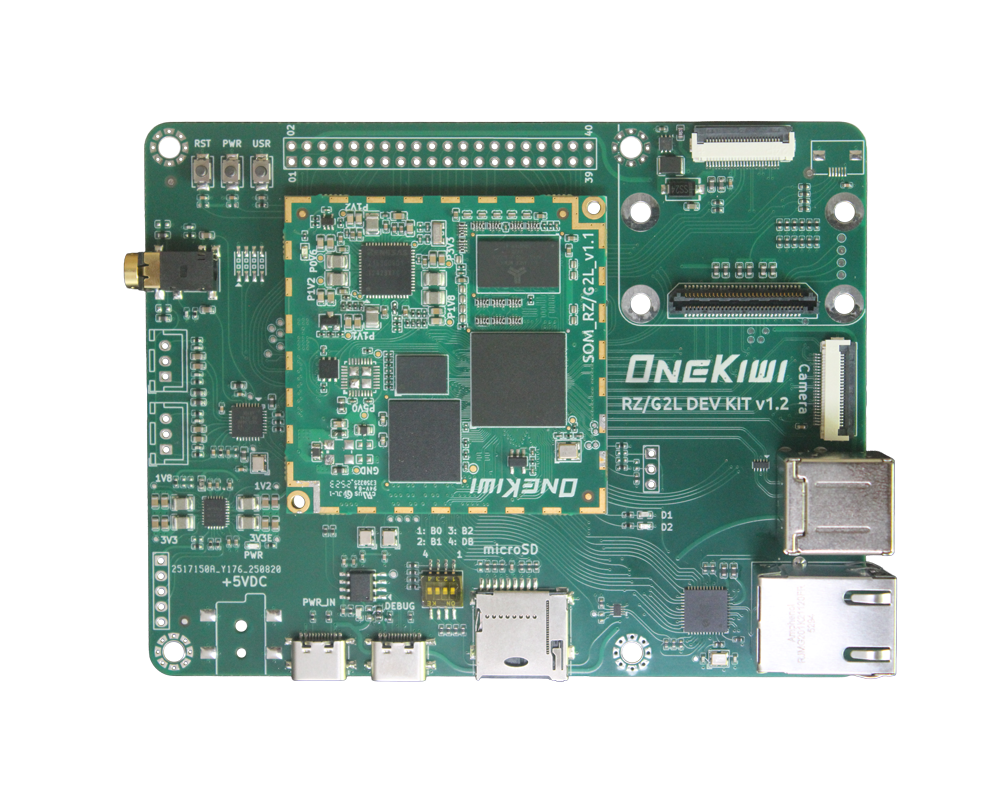

SOM RENESAS RZ/G2L

Mechanical Parameters

• Dimensions: 50 mm x 50 mm
• Power supply: 5V

• Dual core Cortex-A55 1.2 GHz, Cortex-M33 CPU, Mali-G31 GPU
• Built-in GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability

• Built-in Trust Platform Module 2.0

Processor

• Renesas RZ/G2L processor
• Dual 1.2 GHz ARM Cortex-A55
• 200MHz ARM Cortex-M33
• 3D graphics functions (Arm Mali-G31)
• Video codec (H.264)

Memory

• 2 GB DDR4
• 16 GB eMMC Flash
• 512 Mbit QSPI Flash

Peripherals and Signals Routed to Pins

• 2 x RGMII
• 4 x I2C
• 3 x SPI
• 2 x USB 2.0
• 1 x MIPI DSI
• 1 x MIPI CSI
• 1 x Parallel CSI
• 1 x RGB
• 2 x SCI
• 5 x SCIF
• 8 x ADC
• 2 x CAN

OS Support

• Yocto Linux
• Debian
