KIWI 4K FPGA BOARD

Overview

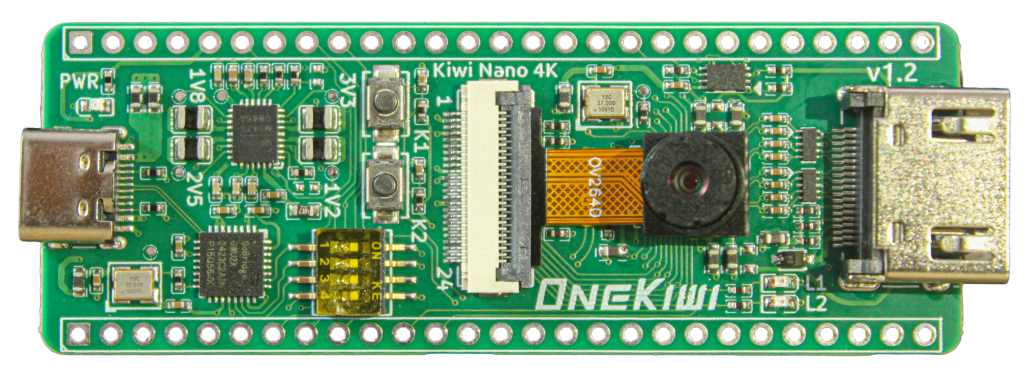

Kiwi Nano 4K is a development board designed based on Gowin Little-bee GW1NSR-LV4C FPGA chip (with Hardcore ARM Cortex-M3). The board is equipped with camera interface and HDMI interface. There is also an onboard Gowin U2X USG-JTAG debugger, which make it convenient for users to using.

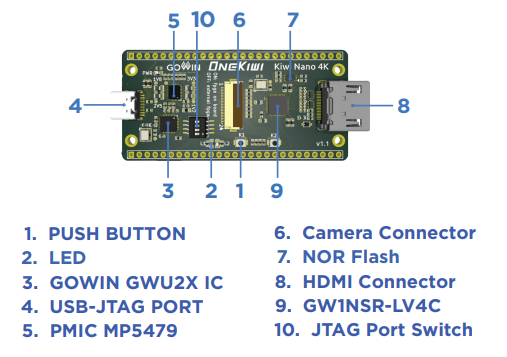

Features

• Main FPGA Chip : GW1NSR-LV4C with ARM Cortex-M3
  Hard-Core
• Embedded 4608 FPGA logic module unit (LUTs)
  and On-chip NOR Flash
• Onboard Gowin GWU2X USB-JTAG debugger
  (Ubuntu OS Support)
• Onboard HDMI connector and Camera
  connector (DVP interface)
• Onboard  32Mbit NOR Flash (External)
•  Onboard Power Management IC provides high-efficency output voltage

Target Applications

• Education Development Board
• Industrial Controller
• FPGA IP Verification
