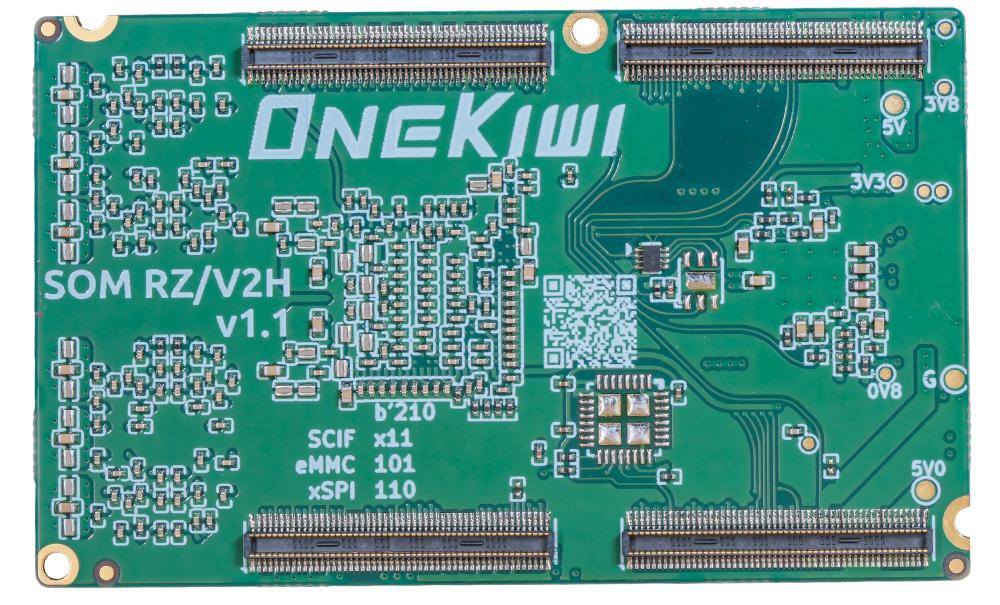

SOM RENESAS SECURE RZ/V2H – AI ACCELRATOR
High-efficiency Vision AI computing in a compact module.
Engineered for Next-Generation Vision AI
This compact AI module combines powerful heterogeneous processing, high-efficiency DRP-AI3 acceleration, and industrial-grade security in one integrated solution. Designed for intelligent edge applications, it enables real-time AI inference, multimedia processing, and reliable system control.
High-Efficiency AI Acceleration
Up to 80 TOPS (Sparse) with DRP-AI3 for optimized vision AI workloads.
Heterogeneous Multi-Core Architecture
Quad Cortex-A55, Cortex-R8, and Cortex-M33 deliver balanced performance across AI, real-time control, and system tasks.
Rich High-Speed Connectivity
Extensive MIPI, USB, Ethernet, CAN, and serial interfaces for scalable edge deployment.
OneKiwi RZ/V2H Evaluation Board
The evaluation kit provides a complete hardware platform for evaluating the RZ/V2H System-on-Module (SOM) and developing Vision Artificial Intelligence (AI), multimedia, video analytics, and embedded Linux applications. It enables developers to connect multiple camera sensors, network interfaces, storage devices, display expansion modules, audio peripherals, and debugging tools through a compact carrier board.
The modular design supports flexible SOM replacement and allows customers to use the carrier board as a reference design for custom hardware development. It also enables rapid prototyping for smart camera, multi-camera vision, Mini Network Video Recorder (NVR), industrial vision, robotics, and edge computing applications.
Key Features
- Provides a modular carrier board for the OneKiwi RZ/V2H SOM.
- Supports multi-camera input for high-resolution image sensor evaluation.
- Provides dual Gigabit Ethernet connectivity for networking and industrial applications.
- Supports multiple Universal Serial Bus (USB) interfaces for peripheral expansion.
- Provides storage expansion through solid-state drive and micro Secure Digital card interfaces.
- Supports optional display output through an external Display Serial Interface-to-High-Definition Multimedia Interface converter module.
- Provides integrated audio codec support with a 3.5 mm audio output jack.
- Includes a dedicated USB-to-Universal Asynchronous Receiver-Transmitter debug console.
- Supports compact edge device prototyping with a small board form factor.
Key Benefits
- Provides a complete reference carrier board for fast hardware evaluation and custom carrier board development.
- Enables rapid development of multi-camera Vision AI, video analytics, smart camera, Mini NVR, robotics, and embedded Linux applications.
- Supports modular SOM replacement for flexible product configuration and future hardware scalability.
- Reduces development effort by providing ready-to-use interfaces for camera, networking, storage, display expansion, audio, USB, and debug functions.
- Supports compact proof-of-concept development and edge device integration with a small 115 mm x 99 mm form factor.
AI Application Usecases
Built-in DRP-AI3’s excellent power efficiency and offer up to 80 TOPS
(Sparse) ideally suited for Vision AI Application
Specifications
Key technical specifications at a glance
Documentation
Everything you need to get started with your integration
Request Your Custom Quote
Our engineering team will provide a tailored solution with competitive pricing for your project.
